Всенаправленные потолочные антенны DAS
In-Building DAS Antennas Omni | CommScope
| Description |
Frequency Band
(MHz)
| HBW | VBW |
Dimensions
(mm)
| Weight (kg) |
RF
(Connector)
| Part Number |
Data
Sheet
|
| Low PIM In-Building Antennas (PIM -153 dBc) | ||||||||
| Omni | 617-6000 | 360 | NA | 0.4 | N Female | CMAX-O-UW-i53** | ||
| 82 x 205 | 4.3-10 Female | CMAX-O-43-UW-i53** | ||||||
|
698-960
1695-2700
3300-4200
| 360 | NA | 18 x308 | 0.8 | 4.3-10 Female | CMAX-OUS-43-i53 | ||
|
1695-2700
3300-4200
4900-6000
| 360 | NA | 12 x 170 | 0.3 | 4.3-10 Female | CMAX-OUS-UW43-i53 | ||
| Omni MIMO | 617-6000 | 360 | NA | 2.5 x 267 | 0.5 | 4.3-10 Female | CMAX-OMF6-43-UWi53 | |
| 24 x 361 | 1.0 | 4.3-10 Female | CMAX-OMF7-43-UWi53 | |||||
| 65 x 206 | 0.6 | 4.3-10 Female | CMAX-OMF8-43-UWi53 | |||||
| 220 x 18 | 0.7 | N Female | CMAX-OUS1-UW-I53 | |||||
| 4.3-10 Female | CMAX-OUS1-UW43-I53 | |||||||
|
1695-2700
3300-4200
4800-6000
| 360 | NA | 210 x 14 | 0.7 | 4.3-10 Female | CMAX-OMF9-43-UWi53 | ||
|
1695-2700
3300-4200
4900-6000
| 360 | NA | 108 x 175 | 0.5 | N Female | CMAX-OMF3-UWi53 | ||
| 4.3-10 Female | CMAX-OMF3-43-UWi53 | |||||||
|
_
| ||||||||
| Description |
Frequency Band
(MHz)
| HBW | VBW |
Dimensions
(mm)
| Weight (kg) |
RF
(Connector)
| Part Number | Data
Sheet |
| In-Building Antennas PIM -150 dBc | ||||||||
| Omni |
350-470
698-960
1710-6000
| 360 | NA | 150 x 249 | 1.0 | N Female | CELLMAX-O-TCPUSEWi | |
| In-Building Antennas PIM -140 dBc | ||||||||
| Omni |
698–960
1710–2700
| 360 | NA | 85 x 185 | 0.3 | N Female | CELLMAX-O-CPUSEi | |
| 4.3-10 Female | CELLMAX-O-43i | |||||||
| In-Building Antennas | ||||||||
| Omni |
698-960
1710-2700
| 360 | NA | 85 x 185 | 0.3 | N Female | CELLMAX-O-CPUSE | |
Текущая линейка продуктов
| _____Part_Number_____ | |
|
CELLMAX-O-43-WI
| Cell-Max™ Omni In-building Antenna, 698–960 MHz ,1695–2700 MHz and 3100-4200MHz (Dataseet) |
|
CMAX-O-43-UWI53
| CMAX™ Low PIM Omni Indoor Antenna, 617–5925 MHz (recessed ceiling mounting kit PN:7760591 sold separately) (Dataseet) |
|
CMAX-O-43-UW-I53
| Cell-Max™ Low PIM Omni In-building Antenna, 617–6000 MHz (Recessed ceiling mount kit PN:7760591 sold separately) |
|
CMAX-OMF6-43-UWI53
| Cell-Max™ Low PIM Omni MIMO In-building Antenna, 617-6000 MHz |
|
CMAX-OMF7-43-UWI53
| Cell-Max™ Low PIM 4x4 Omni MIMO In-building Antenna, 617-6000 MHz |
|
CMAX-OMF8-43-UWI53
| Cell-Max™ Low PIM Omni MIMO In-building Antenna, 617-6000 MHz |
|
CMAX-OMF9-43-UWI53
| Cell-Max™ Low PIM Omni 4x4 MIMO In-building Antenna, 1695–2700MHz, 3300-4200MHz and 4600-6000MHz |
|
CMAX-OUS1-UW43-I53
| Cell-Max™ Low PIM Omni In-building Antenna, 617-960, 1400-1600, 1695-2700 MHz, 3300-4200 MHz and 4900-6000MHz 4.3-10, Not recommended for metal ceilings |
|
CMAX-OUS-43-I53
| Cell-Max™ Low PIM Omni In-building Antenna, 698–960 MHz, 1695–2700 MHz and 3300-4200 MHz 4.3-10. Not Recommended for metal ceilings. |
|
CMAX-OUS-TUW-43I
| Cell-Max™ Omni In-building Antenna, 350–520MHz, 617-960MHz,1695-2700MHz, 3300-4200MHz and 4900-6000MHz (Dataseet) |
Dataseet
CELLMAX-O-43-WI
CMAX-O-43-UWI53
CMAX-OUS-TUW-43I
Примечание:
CMAX-OUS1-UW-I53 заменен на CMAX-OUS1-UW43-I53
CMAX-OMF3-43-UWI53 заменен на CMAX-OMF8-43-UWI53
CMAX-O-UW-I53 заменен на CMAX-O-43-UW-I53
CELLMAX-O-TCPUSEWi снят с производства. Доступны замены.
CELLMAX-O-43i заменен на CELLMAX-O-43-WI, Omni In-building Antenna, 698-960 MHz ,1695-2700 MHz and 3100-4200MHz PDF
CELLMAX-O-CPUSE заменен на CELLMAX-O-CPUSEW, Omni In-building Antenna, 698–960 MHz,1695–2700 MHz and 3100-4200MHz PDF

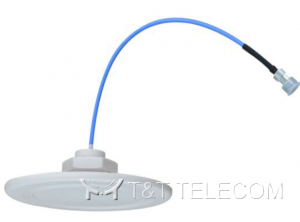

AO-6060V45S03 Indoor DAS Ceiling Omni Antenna, 5 dBi, 617-6000 MHz, SISO
AO-6060LH47S03 617-6000 MHz DAS Ultra-Wideband Ultra-Slim Omni Antenna, SISO, 4-7dBi, KADКВТ (скл. 10 шт.) (KB1)

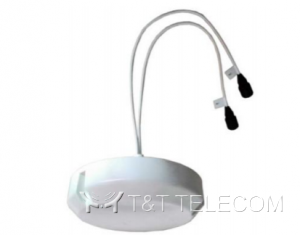

AO-6060L45M03 Ceiling Mount Omni MIMO Antenna 617-6000 MHz 5dBi (зак 66, склад 12)
AO-6938V35S02 Ceiling Mount Omni Antenna 698-3800 MHz 3-5dBi SISO КВТ Product Data Sheet
AO-6940V45M03 Indoor Omni MIMO Antenna 698-4000 MHz 5dBi KADКВТ Product Data Sheet
AO-6927V25S02 Indoor Omni Antenna 698-2700 MHz 2-5dBi SISO КВТ Product Data Sheet (от 1000 шт.) (КВ20)
AP-6927V71S02 Indoor Panel Antenna 790-2700 MHz 7 dBi -10 dBi SISO КВТ Product Data Sheet
AP-757938V68S02 Indoor Panel Antenna 698-3800 MHz 6dBi-8dBi SISO КВТ Product Data Sheet
AP-707938X77M02 Indoor Panel MIMO Antenna 698-3800 MHz KADКВТ Product Data Sheet
| Ceiling mount Antenna SISO | ||||
| _____Артикул_____ | Краткое описание | Диапазон частот | ||
| TQJ-0727XDA-M | VPol 698-2700MHz 2-5dBi @2x33dBm＜-140dBc Ceiling mount Antenna (-1000) | 698-960/1710-2700 | SISO | 20 |
| TQJ-0638XDZ-M | VPol 617-3800 MHz Omni directional ceiling antenna , ≤-153 dBc | 617-960/1710-2700/3300-3800 | SISO | |
| TQJ-03560XTLE-M | HPol 350-6000MHz, 4/4/6/7/7dBi, Omnidirectional ceiling antenna | 350-520/617-960/1695-2700/3300-4200/4800-6000MHz | SISO | |
| TQJ-03560XTLH-M | 350-6000MHz, 4/4/6/7/7dBi, SISO Omnidirectional ceiling antenna(Нет арт.) | 350-520/617-960/1695-2700/3300-4200/4800-6000MHz | SISO | 0 |
| TQJ-0660XTLA-M | Linear/Horizontal, 617-6000MHz , 4/4/5/6/7dBi, -153dBc, 4.3-10F or NF Ultra-Thin Antenna | 617-698/698-960/1695-2700/3300-4200/4800-6000 MHz | SISO | 1 |
| TQJ-0660XDZ-M | VPOL 617-6000MHz 3.5-5dBi 20W@150dbc Omni Ceiling Antenna | 617-960/1710-2700/3300-3800/4900-6000MHz | SISO | |
| Ceiling mount Antenna MIMO | ||||
| _____Артикул_____ | Краткое описание | Диапазон частот | ||
| TQJ-D0727XDZ-M | VPol 698-2700MHz 4-5dBi @2×43dBm＜-150dBc MIMO Ceiling Antenna | 698-960/1710-2700 | MIMO | |
| TQJ-D0740XTLA-M | HHPol 698-3800MHz 2-5dBi @2×43dBm＜-150dBc MIMO Ceiling Antenna | 617-960/1710-2700/3300-3800 | MIMO | |
| TQJ-D0660XTLA-M | 2*Linear,Horizontal, HHPol 617-6000MHz 4-7dBi @2×43dBm＜-153dBc MIMO Ceiling Antenna | 617-698/698-960/1695-2700/3300-4200/4800-6000MHz | MIMO | |
| TQJ-D0660XDZ-M | XXPOL 617-6000MHz 6-8dBi 5G MIMO Omni Ceiling Antenna | 617-960/1695-2700/3300-4200/4800-6000MHz | MIMO | |
