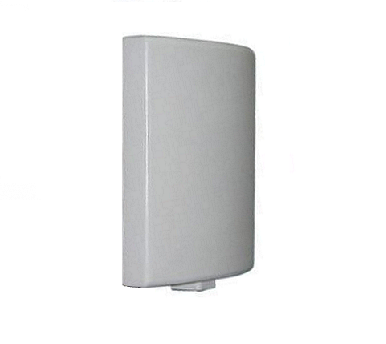

Model

APVT-4143-0685KB

Frequency range,

410 – 430 MHz

Polarization

Vertical

Gain

6 dBi

Half-power beam width

H-plane: 85°

E-plane: 120°

First upper side lobe  suppression

15 dB

Front-to-back ratio

≥ 15 dB

Impedance

50 Ω

VSWR

< 2.0

Intermodulation IM3

< –150 dBc (2 x 43 dBm)

Max. power

50 W

Ground

DC Grounding

Mechanical specifications

Connector

N-female or Customized

Connector position

Bottom

Mechanical tilt

0 °

Max. wind velocity

240 km/h

Operating temperature

-40° to +60° C (-40° to +140° F)

Suitable pole diameter

Ø40 – Ø50 mm

Radome material and color

Fiberglass / Gray

Antenna size

240 x 230 x 50 mm (9.5 x 9 x 2 in)

Packing size

340 x 280 x 90 mm (13.4x11x3.5  in)

Weight

0.96 kg (2.1 in)

Bracket Weight

0.60 kg (1.4 in)
