Electrical specifications

Frequency range (MHz)

617-960

1710-2700

3300-3800

Polarization

Vertical

Gain (dBi)

3.5±1

4±1

4±1

Horizontal beam width (°)

360

Typical Vertical beam width (°)

90

65

50

Impedance (Ω)

50

VSWR

≤1.8

Intermodulation IM3 (2×43dBm carrier)

≤-153 dBc

Maximum power (W)

50

Lighting protection

DC Ground

Mechanical specifications

Connector

4.3-10 Female

Exposed cable size (cm)

30 (or customer requirement)

Connector position

Bottom

Antenna size (mm)

Φ207*56

Packing size (mm)

213*168*204

Weight (kg)

0,6

Radome material

ABS

Radome color

White

Operating temperature (℃)

-40～60

Application

Indoor

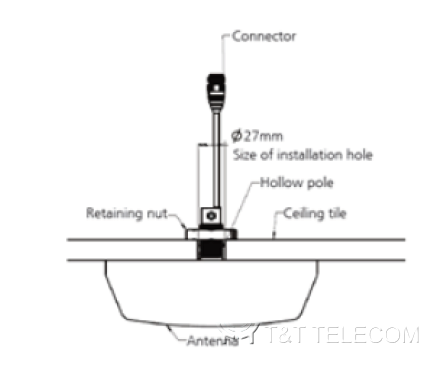

Mounting

Fixed with nut
