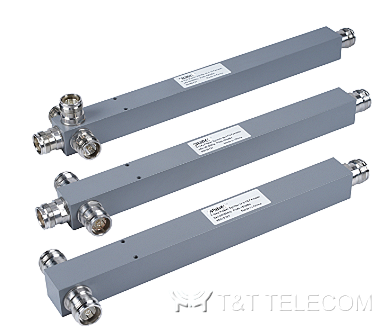

2-Way, 3-way, 4-way models for 50 Ohm from 340 to 2700 MHz, 4.3-10 Female

For connecting…antennas			2 Way	3 Way	4 Way
Distribution Loss(dB)			3,0	4,8	6,0
Insertion Loss (dB)			≤0.25	≤0.35	≤0.4
Return Loss (dB)			≥19
Input Power (W)			≤300
PIM3 (@2x43dBm Carrier) (dBc)				≤-160
Peak Power (W)			≤1500
Impedance (Ω)			50
Mechanical Specifications
Dimensions,HxWxD(excluding connectors and mounting bracket)(mm)			294x25x25	291x25x25	291x25x25
Weight (including connectors and mounting bracket) (kg)			0,57	0,61	0,63
Packing Size(mm)			340x75x40	375x75x40	375x75x60
Connector Type			4.3-10 Female(Twisthead)
Color			Light Gray(Customizable)
Mounting			Wall Mounted

Environmental Specifications
Operational Temperature (°C)	-40 to +65
Operational Humidity (%)	≤95
Ingress Protection Class	IP66 (IP67 optional)  (Indoor and Outdoor)
